- Top thermal efficiency
- Reliability in construction
- Innovative design
ATLAS |
---|
TYPE |
1,50m² |
1,90m² |
2,30m² |
2.30-Hm² |
INFORMATION CHARACTERISTICS DIMENSIONS
Selective surface made of 4mm thick aluminum sheet with a titanium oxide coating. The coating process is carried out in vacuum in Germany. The solar radiation absorption surface is perfectly applied to the copper hydro-skeleton through welding using automatic LASER machines for direct heat transfer to the thermal fluid. Its properties ensure maximum thermal performance of the collector, achieving an absorptivity coefficient of a>95% and an emissivity coefficient of e<5%.
Made of high-quality, aesthetic 0.8mm thick aluminum profiles with external angular connections that ensure excellent fit and sealing of the frame components, as well as high stability of the collector. The frame back is made of 5mm aluminum sheet, applied with a special automatic mechanical clinching machine to ensure tightness and robustness.
It is a 3.2mm thick tempered low-iron glass. The low iron content advantageously results in low reflection, leading to higher absorption. Additionally, it is a safety glass that can withstand hail and object impacts.
Density of 30kg/m3 glass wool is placed on the back of the collector. This achieves minimal thermal loss. Furthermore, a specially designed elastic pad for application at the copper pipe outlets prevents the creation of a thermal bridge between the frame and the hydro-skeleton while also absorbing contractions and expansions due to temperature changes.
SUPPORT BASE
A unique mechanical design of a terrace support base that allows for easy transportation, assembly, and installation of the solar system. It is processed using a LASER machine, resulting in smooth edges that do not cause injury. The solar collector support has been tested to withstand the most extreme weather conditions. For assembly instructions, refer to the video link provided.
A unique mechanical design of a tile roof support base that allows easy assembly and installation of the solar system. It is processed using a LASER machine, resulting in smooth edges that do not cause injury. The solar system support has been tested to withstand the most extreme weather conditions. Please pay attention to the installation for the appropriate orientation depending on the country (e.g., the suitable orientation for Greece is south). Additionally, the buyer should consider the system’s inclination, which is recommended to be at least 30% or up to 40%. For assembly instructions, refer to the video link provided.
The packaging of the solar system support base includes all the screws required for its assembly and the components necessary for connecting the pipes that join the tank with the collector.

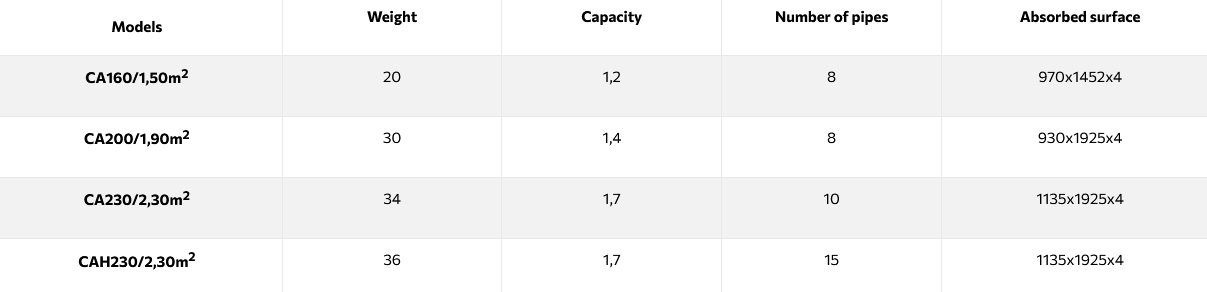

CHARACTERISTICS
Models |
Weight |
Capacity |
Number of pipes |
Absorbed surface |
CA160/1,50m2 |
20 |
1,2 |
8 |
970x1452x4 |
CA200/1,90m2 |
30 |
1,4 |
8 |
930x1925x4 |
CA230/2,30m2 |
34 |
1,7 |
10 |
1135x1925x4 |
CAH230/2,30m2 |
36 |
1,7 |
15 |
1135x1925x4 |

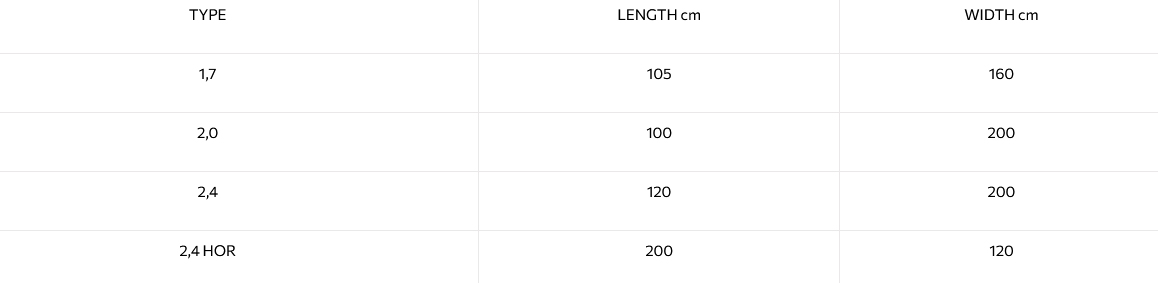

DIMENSIONS
TYPE |
LENGTH cm |
WIDTH cm |
1,5 |
100 |
150 |
1,9 |
96.5 |
196.5 |
2,3 |
116.5 |
196.5 |
2,3 HOR |
196.5 |
116.5 |

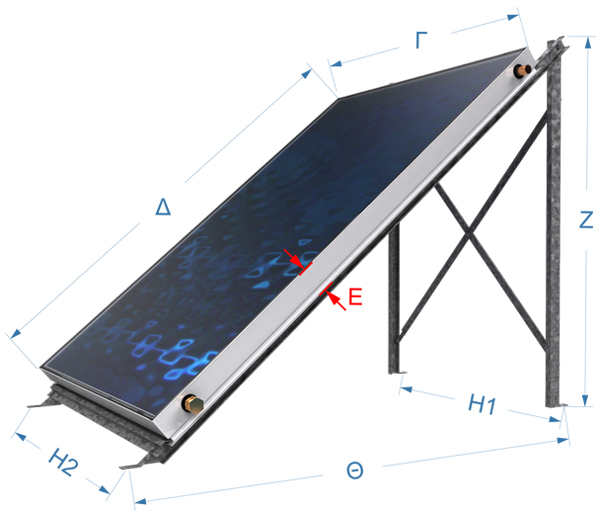

COLLECTOR BASE DIMENSIONS
TYPE | Γ | Δ | Ε | Ζ | Η1 | Η2 | Θ |
---|---|---|---|---|---|---|---|
1,50 | 93 | 156 | 7,5 | 122 | 93 | 93 | 142 |
2,00 | 93 | 207 | 7,5 | 146 | 93 | 93 | 176 |
2,30 | 93 | 207 | 7,5 | 146 | 93 | 93 | 176 |
2,30-Η | 93 | 125 | 7,5 | 100 | 93 | 93 | 89 |
2 Χ 1,50 | 93 | 156 | 7,5 | 122 | 93 | 93 | 142 |
2 Χ 2,00 | 93 | 207 | 7,5 | 146 | 93 | 93 | 176 |
2 Χ 2,30 | 93 | 207 | 7,5 | 146 | 93 | 93 | 176 |
